RESOLVERS (INDUCTIVE)

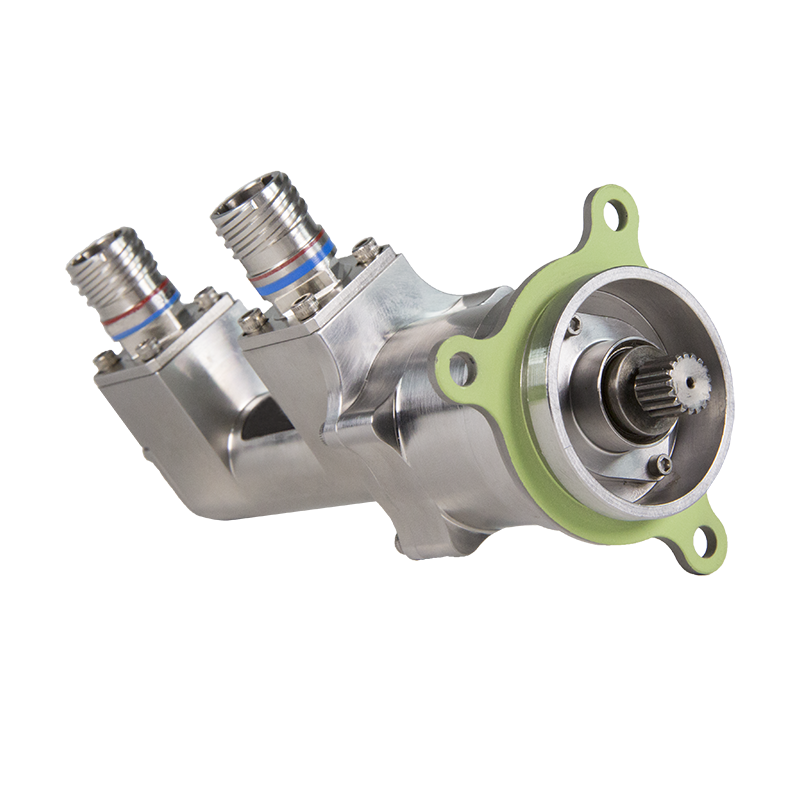

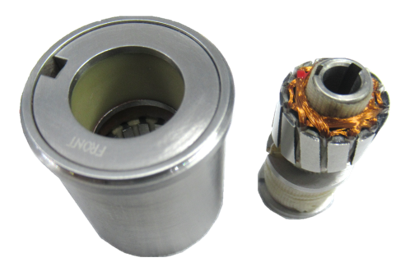

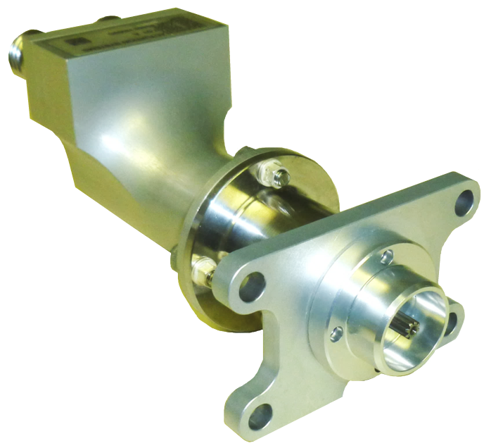

Curtiss-Wright resolvers are bespoke high accuracy analog devises so that their resolution is only limited by the demodulation scheme. Our solutions are offered in framed or frameless configurations.
KEY FEATURES INCLUDE:
Our products are typically developed from a custom set of requirements, however some key features include:
- Qualification to RTCA D0-160
- Up to three redundant channels
- In-line or cluster configurations
- High speed shaft sealing available
- Gearhead allows absolute measurement over >300 input shaft revolutions
- Accuracy's as good as ± 0.2° at ambient
- Temperature range -67°C to +150°C
- > 200,000 MTBF (with gearhead)
APPLICATIONS:
- High lift flight controls system position and asymmetry sensing
- Fly-by-wire flight control systems
- Environmental control system valve position
- Health management
- Fuel metering
- Missile fin position
