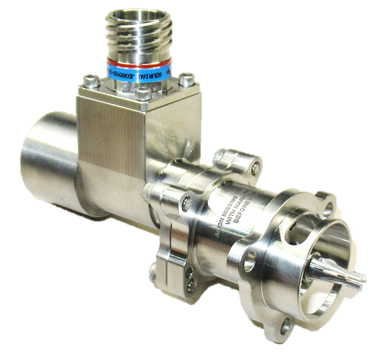

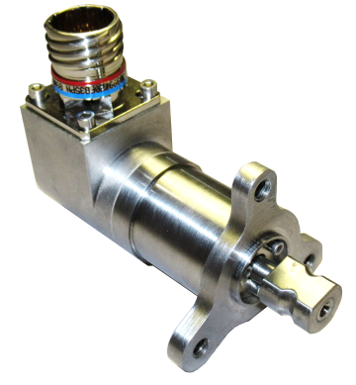

ROTARY VARIABLE DIFFERENTIAL TRANSFORMER (RVDT)

KEY FEATURES INCLUDE:

Our products are typically developed from a custom set of requirements, however some key features include:

• Qualification to RTCA D0-160
• Up to three redundant channels
• In-line or cluster configurations
• High speed shaft sealing available
• Gearhead allows absolute measurement over >300 input shaft revolutions
• Accuracy's as good as ± 0.2° at ambient
• Temperature range -67°C to +180°C
• > 200,000 MTBF (with gearhead)

APPLICATIONS:

• High lift flight controls system position and asymmetry sensing
• Environmental control system valve position
• Fuel metering
• Missile fin position
