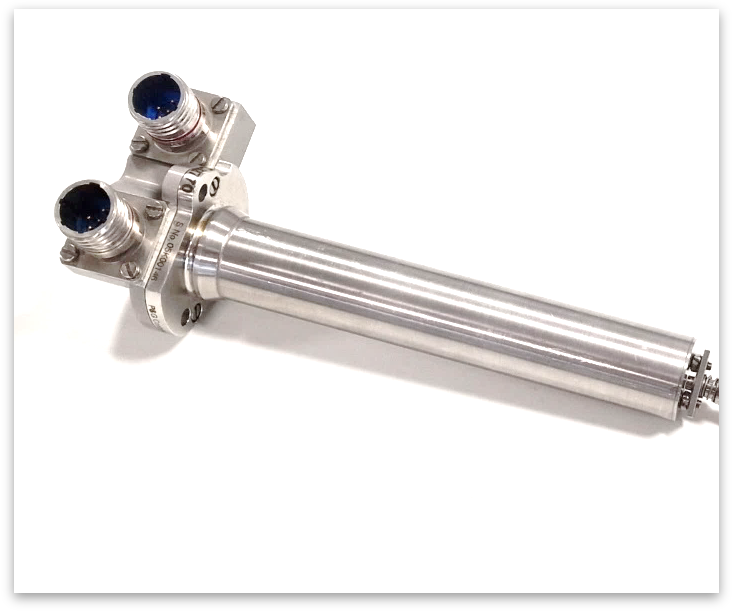

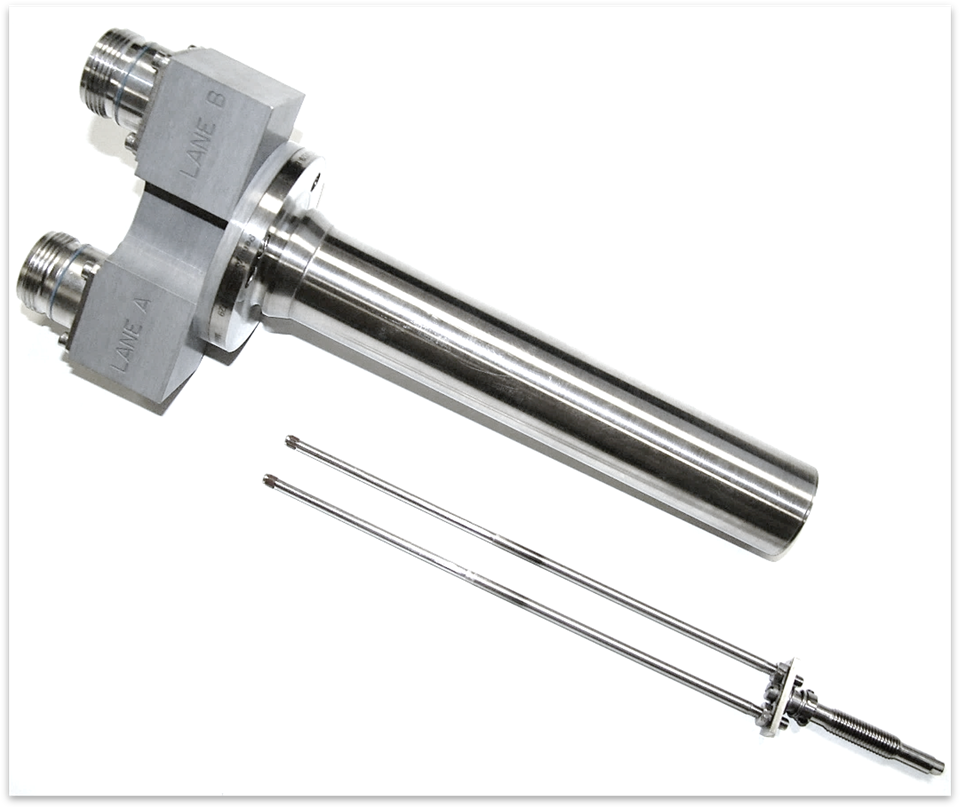

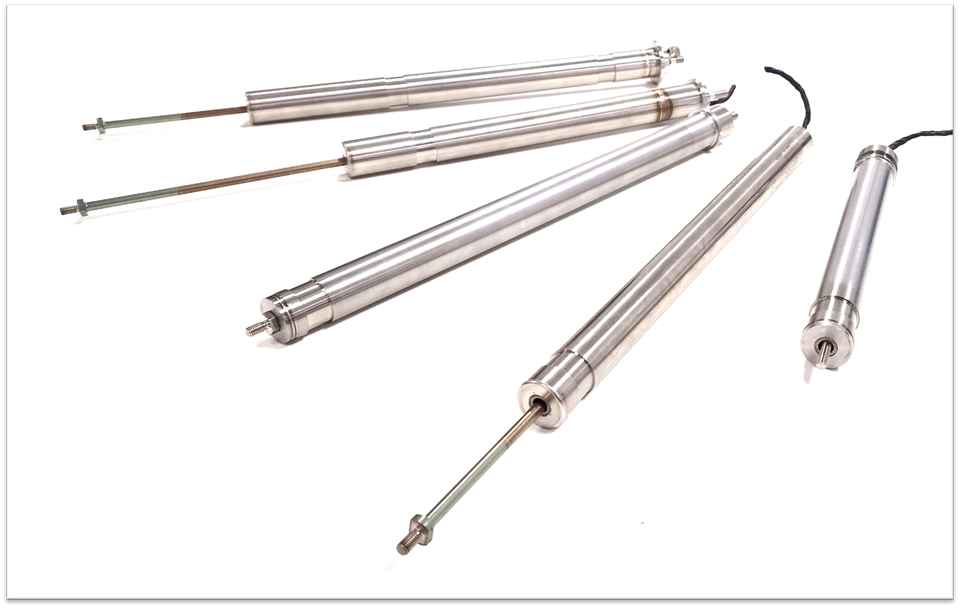

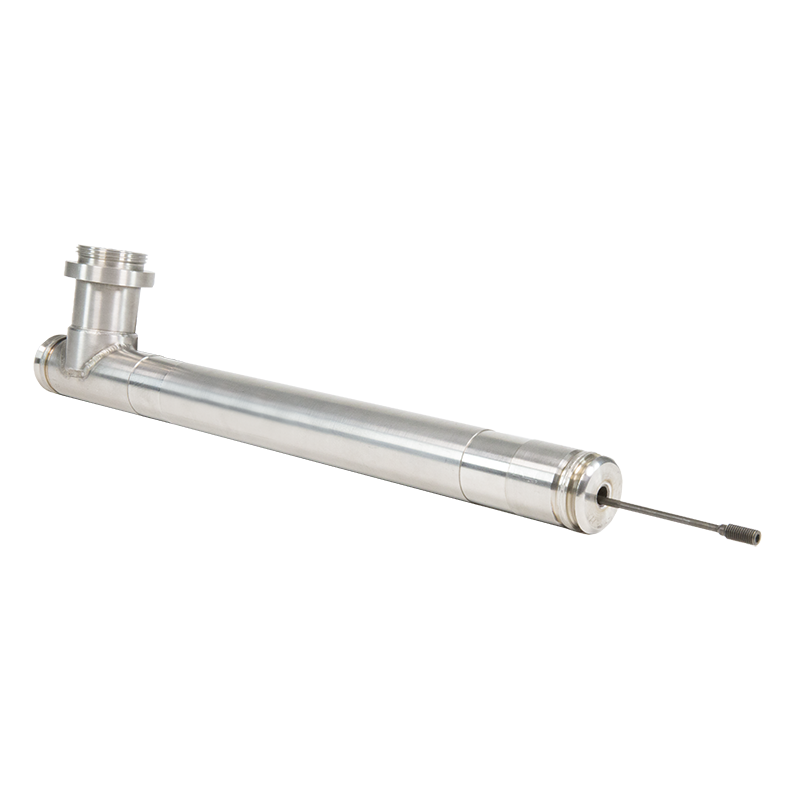

LINEAR VARIABLE DIFFERENTIAL TRANSFORMER (LVDT)

KEY FEATURES OF LVDTS:

Our products are typically developed from a custom set of requirements, however some key features include:

• Qualification to RTCA D0-160 or applicable MIL standards
• Up to four redundant channels (quad redundancy)
• In-line or side-by-side winding configurations
• Environmental or Hermetically sealed design
• Measurement range from 0.007” (2mm) to 20” (508mm)
• Accuracy up to 0.1% full scale deflection
• Lane to lane tracking up to 0.01% full scale deflection
• Able to withstand 13,500psi for pressurized applications
• > 1,000,000 MTBF

APPLICATIONS:

• Flight control actuators for fixed and rotary wing aircraft
• Flight surface position feedback
• Delta-pressure applications
• Engine fuel metering valve position
• Engine variable geometry actuators
• Thrust Reverser Actuation System
