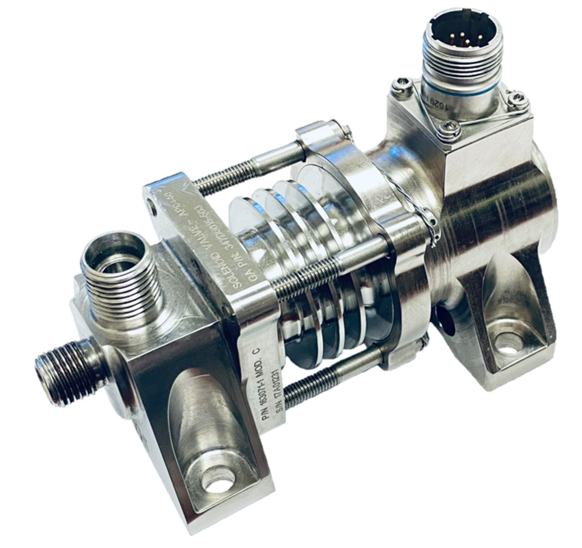

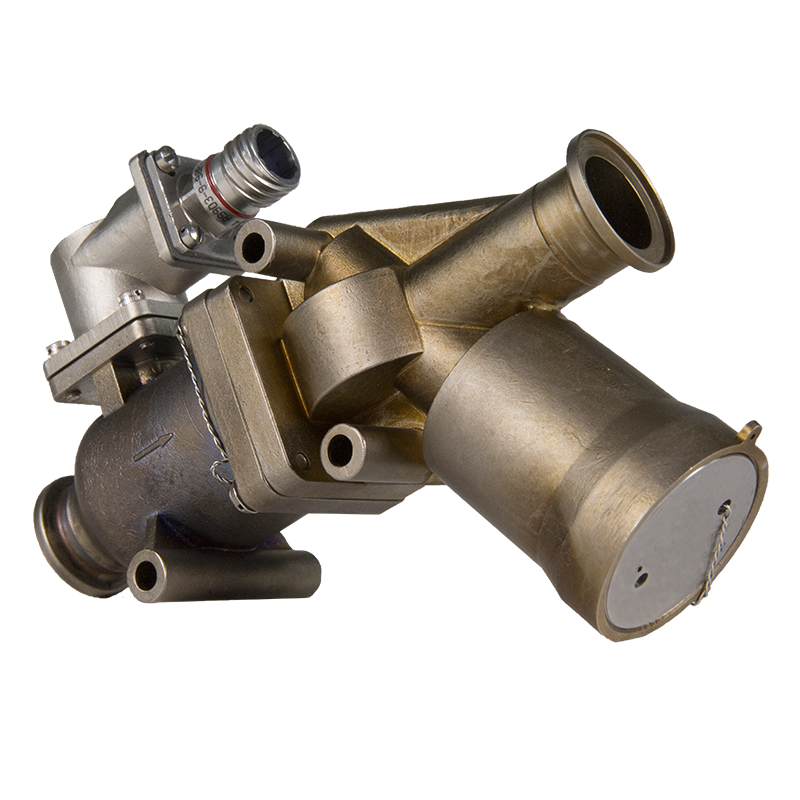

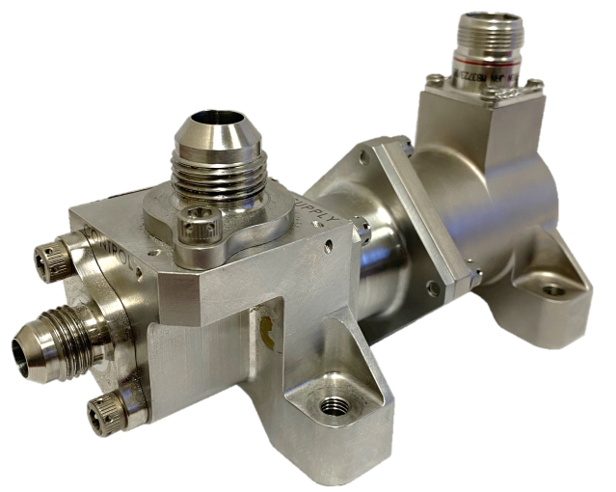

Pnuematic Solenoid Valves

Two stage, 3 way flow control, using high temperature bleed air from HPC stage 3 to stage 8.

 Security code
* Required  How we use this information


Email

[email protected]

Telephone

+1.480.758.6026

Key Features:

  • 680 C capability reduces system weight and offers installation flexibility
  • Thermal management to protect electrical insulation of solenoid (240 C capability for 20,000 hrs)
  • Optimized for high vibration environment (structural and functional) using patented technology
  • Innovative architecture to reduce impact loading on valve seats for high MTBF(>120K cycles)
  • Contamination tolerant with particulate up to 150 microns. Upstream filtration not mandatory.
  • In-house test capability simulating high temperature contaminated bleed air



Applications:

  • Anti Ice Solenoid Valve Controls Anti ice Valve
  • Buffer Air Shut Off Valve Controls the Active Buffer Air Valve
  • Engine Bleed Valve
